Description

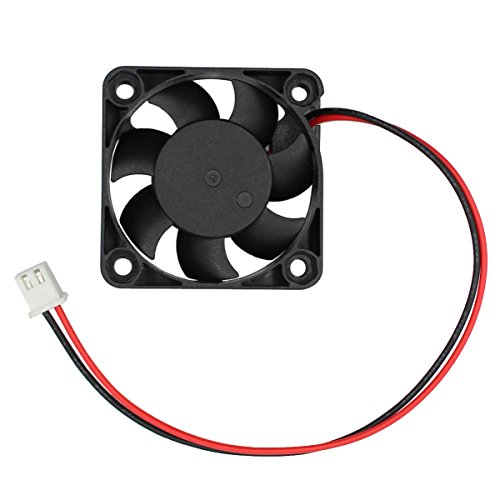

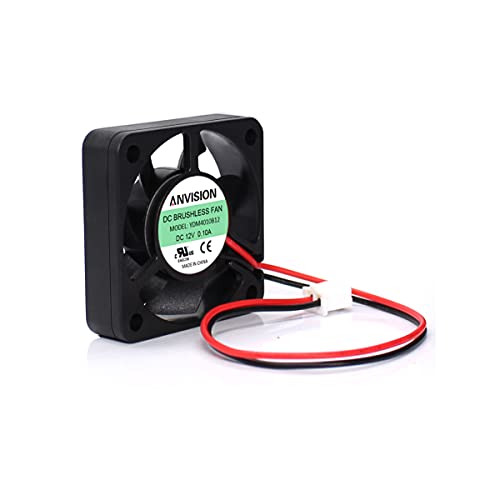

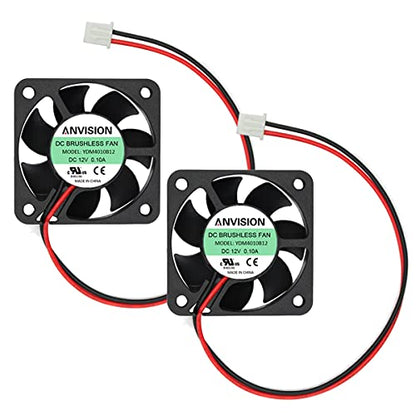

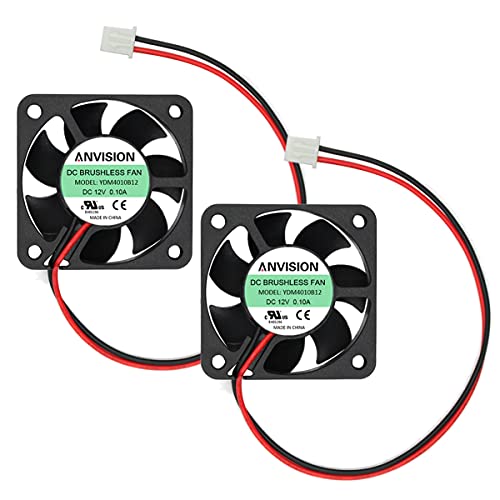

40×40×10mm DC fan operating at 12V, used for active cooling of enclosures, heatsinks, or high-current circuits. Compact and lightweight with two-wire connection for easy integration.
Specs
| Voltage |
12V DC |

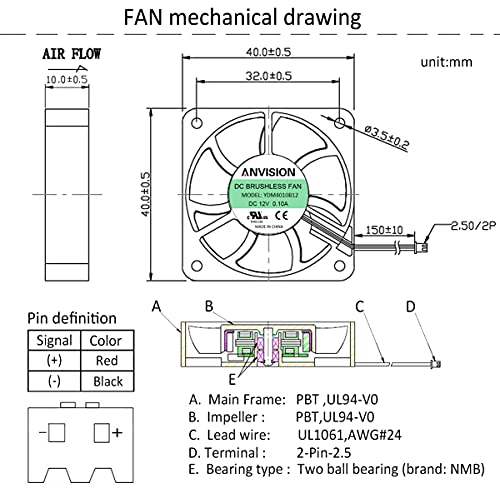

| Dimensions |
40mm × 40mm × 10mm |
| Current Draw |
~100–150mA |

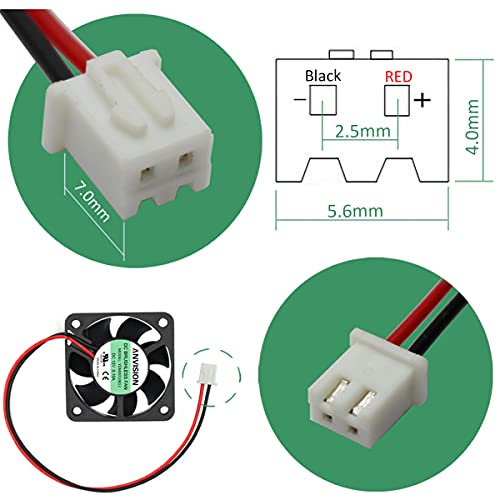

| Connector |
2-wire (red/black) |
| Mounting |
4-hole corners |
| Bearing |
Sleeve or ball (varies) |
| Noise Level |
20–25 dBA |
| Airflow |
~5–7 CFM |
Compatibility
- ✔️ Works with 12V regulators or wall adapters
- ✔️ Ideal for cooling power supplies, MOSFETs, Raspberry Pi, or drivers
- ✔️ Fits project enclosures with 40mm fan cutout

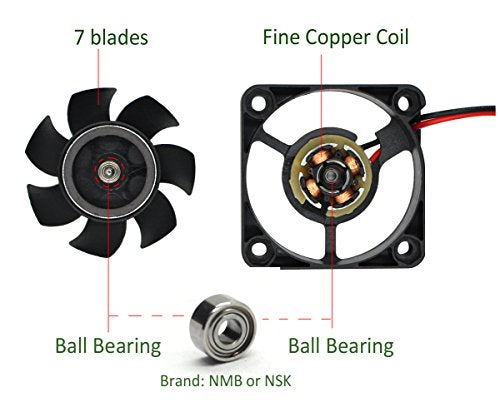

DescriptionThese fans operate at 12V DC with a current of 0.1A, delivering an airflow of 7.56 CFM at 6200 RPM. They feature dual ball bearings for reliable, long-lasting performance and low noise at 27.5 dBA. Each fan comes with a 2-pin 2.5mm connector and a 150mm lead wire, backed by a two-year warranty.
