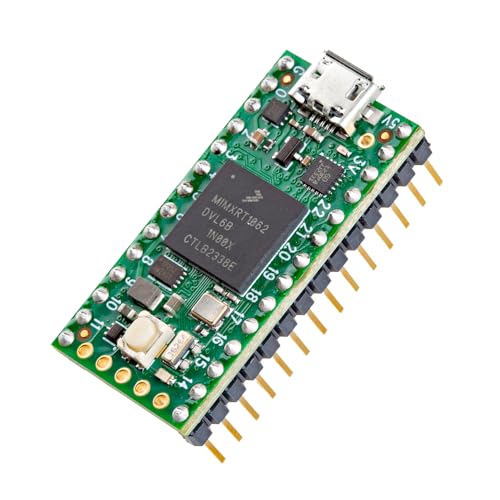

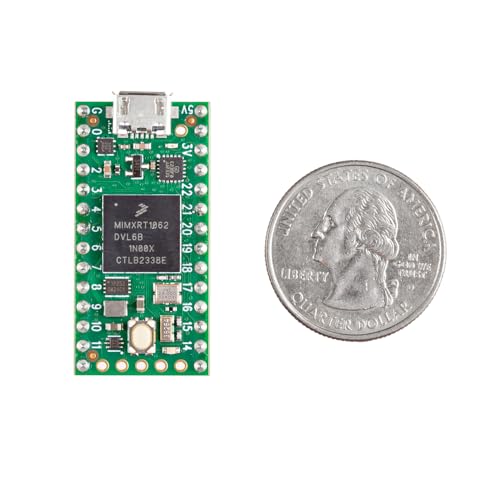

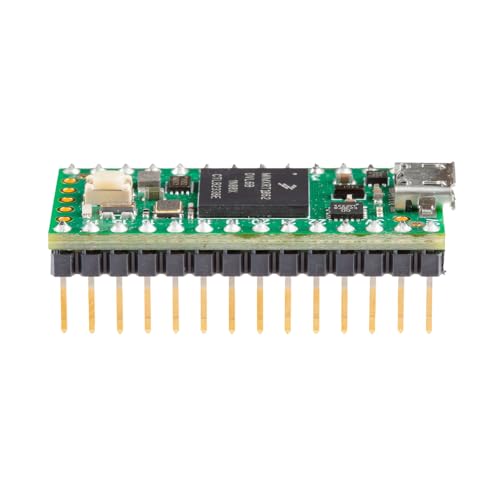

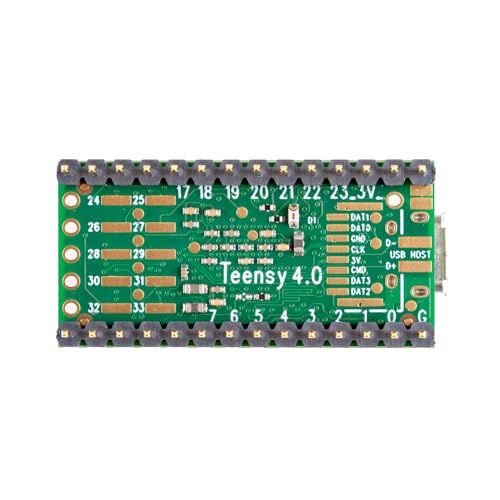

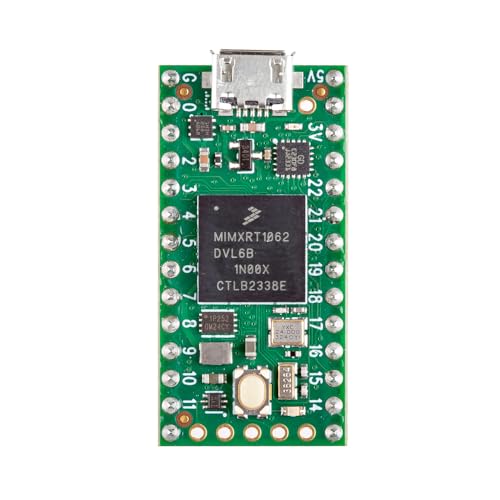

Teensy 4.0 with Headers
Teensy 4.0 with Headers
Regular price
$31.99 USD
Regular price
Sale price
$31.99 USD
Unit price
/
per
Couldn't load pickup availability
Share
Description
The Teensy 4.0 is an ultra-high-performance microcontroller board based on the ARM Cortex-M7 processor, running at 600 MHz. It's ideal for real-time audio DSP, advanced robotics, and other demanding embedded systems. With Arduino IDE support through Teensyduino, it offers powerful features in a compact footprint.
Specs
| Specification | Value |
| Microcontroller | NXP iMXRT1062 (ARM Cortex-M7) |
| Clock Speed | 600 MHz |
| Flash Memory | 2 MB |
| RAM | 1 MB |
| Digital I/O Pins | 40 |
| Analog Input Pins | 14 |
| USB | USB High Speed (480 Mbps) |
| Audio Interface | I2S Supported |
| Board Dimensions | 35.6 x 17.8 mm |
Compatibility
- Arduino IDE (with Teensyduino add-on)
- PlatformIO
- Audio Shield (Teensy 4.x-compatible)
- QNEthernet, OctoWS2811, I2S audio libraries
Resources
- 📘 Teensy 4.0 Getting Started

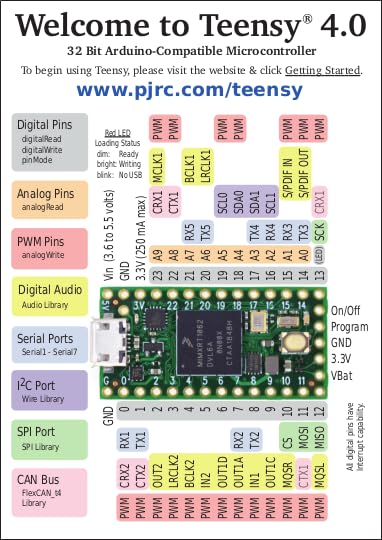

PJRC Docs - 🔧 Pinout Diagram
Teensy 4.0 Pinout
Description
Features a powerful ARM Cortex-M7 processor running at 600MHz with the NXP iMXRT1062 chip, providing true real-time microcontroller performance. This dual-issue superscalar processor executes two instructions per clock cycle and includes tightly coupled memory for single-cycle access via wide 64-bit buses. The board includes a power shut-off feature controlled by a pushbutton, allowing complete disabling of the 3.3V supply. Sized identically to the Teensy 3.2, it retains compatibility with most pin functions and comes with pre-soldered header pins for easy integration.
