Description
This 25kg high-torque servo motor is ideal for robotic joints, RC crawlers, and industrial actuation. With durable metal gears, 25T spline, and wide voltage support, it delivers strong, consistent torque with excellent positional accuracy.
Specs
| Operating Voltage |
6.0–7.4V |
| Torque |
25 kg·cm @ 7.4V |
| Speed |
0.14 sec/60° @ 6V |
| Control Signal |
PWM (500–2500 μs) |
| Gear Type |
Metal (steel/copper) |
| Spline |
25T (6mm diameter) |
| Rotation Range |
180° |
| Weight |
~60g |
| Connector |
3-pin (Signal, VCC, GND) |
| Dimensions |
40 × 20 × 40mm |
Compatibility
- ✔️ Compatible with Arduino, ESP32, Raspberry Pi
- ✔️ Interfaces with PWM drivers (PCA9685)
- ✔️ Requires regulated power supply (2–3A)

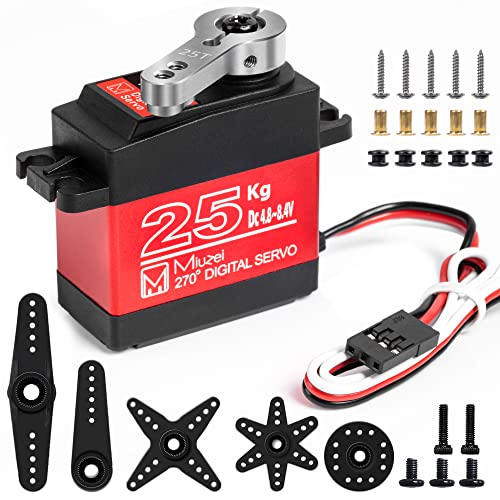

- ✔️ Accepts standard 25T servo horns
Resources
A powerful 25kg/cm digital servo with full metal gears and high precision. Designed for demanding robotic joints, mechanical actuators, or large RC vehicles.
