Raspberry Pi Pico W

Description

The Raspberry Pi Pico W builds on the original Pico by adding Wi-Fi connectivity via the Infineon CYW43439 chip. It maintains the same RP2040 core and pinout, offering seamless transition to wireless IoT projects without changing existing Pico designs.

Specs

Specification	Value
Microcontroller	RP2040 (Dual-core Arm Cortex-M0+)
Clock Speed	133 MHz
Flash Memory	2 MB
SRAM	264 KB
Wi-Fi	802.11n 2.4 GHz (CYW43439)
GPIO Pins	26
USB	Micro USB (Device Only)
Operating Voltage	3.3V

Compatibility

• MicroPython and C SDK with Wi-Fi support
• Thonny IDE (for MicroPython)

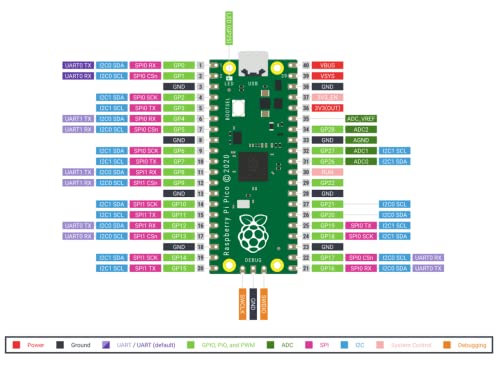

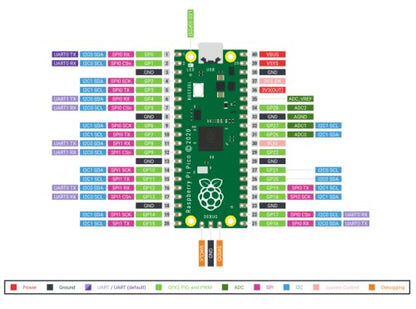

• Same pinout as Raspberry Pi Pico
• IoT protocols: MQTT, HTTP, TCP/IP

Resources

• 📘 Pico W Wi-Fi Quickstart
  Raspberry Pi Docs
• 💡 MicroPython Wi-Fi Examples
  GitHub Pico W Examples
• 🔧 Thonny IDE Setup (Pico W)
  Thonny Walkthrough

Description
Powered by the RP2040 microcontroller chip designed by Raspberry Pi, this compact castellated module houses a dual-core ARM Cortex-M0+ processor running up to 133 MHz. It adds onboard 2.4GHz WiFi (IEEE 802.11n) via the Infineon CYW43439 wireless chip, making it perfect for connected IoT applications.
