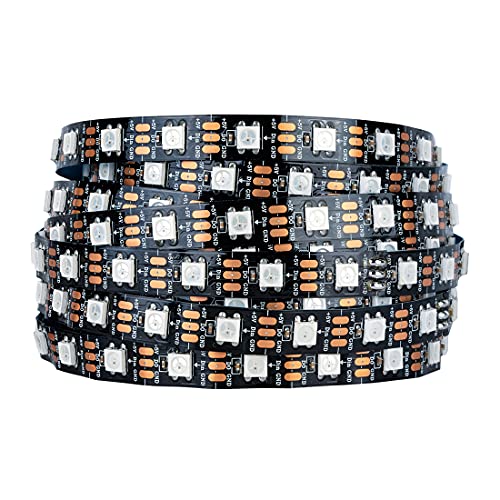

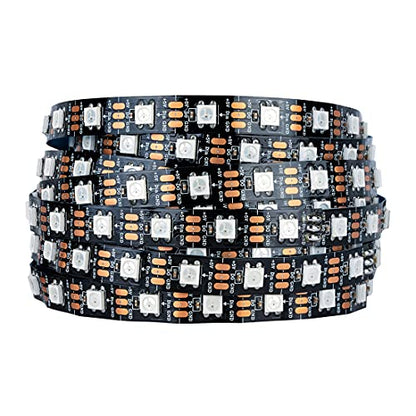

WS2812B LED Strip

Description

The WS2812B is an individually addressable RGB LED strip. The 1 m version typically includes 30 to 60 LEDs, each controllable via a single data line. Ideal for colorful displays, wearables, and lighting effects with microcontrollers.

Specs

LED Count	30–60 LEDs per meter (common variants)
Operating Voltage	5V DC
Max Current	≈60mA per LED at full white
Data Signal	Single-wire, 800 kHz protocol
Bit Depth	24-bit color (8 bit per channel)
Cabling	5V, GND, Data input/output

Compatibility

• Arduino/ESP32/ESP8266 data-output; FastLED or NeoPixel libs
• Raspberry Pi (via rpi_ws281x library)
• Pico and other RP2040 boards

Resources

• 📘 FastLED Library
  GitHub repo
• 💡 NeoPixel Arduino Tutorial
  Adafruit guide
• 🔧 Raspberry Pi WS2812 Guide
  Pi tutorial

Description

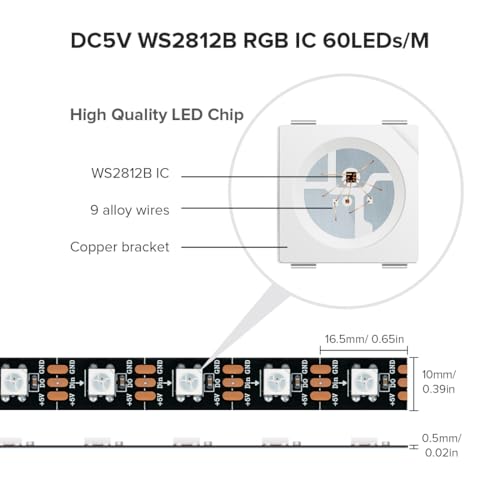

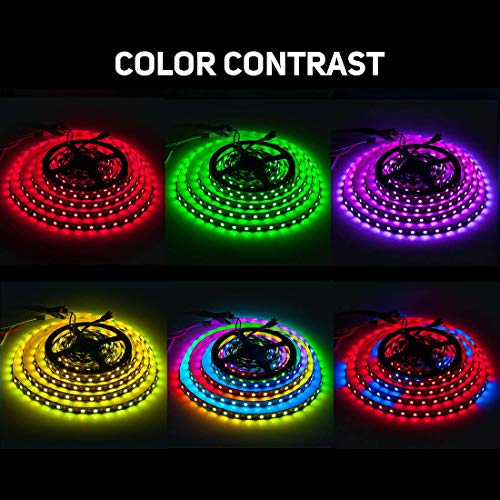

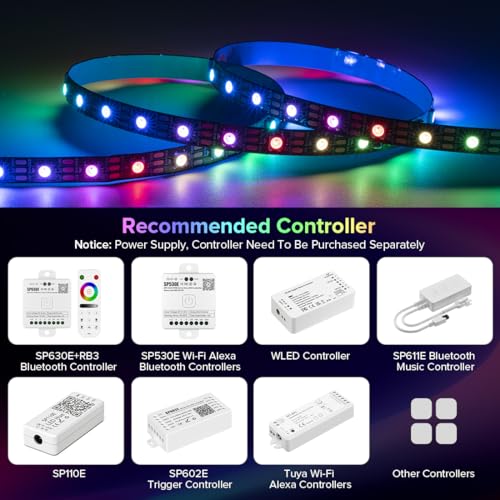

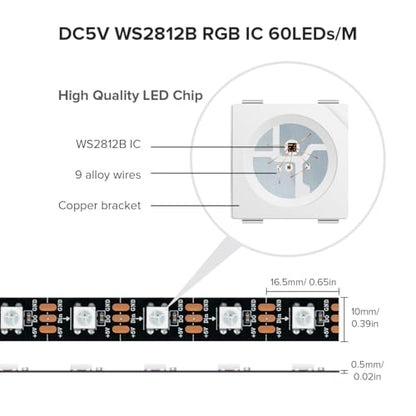

This programmable WS2812B LED strip features individually addressable SMD 5050 LEDs, each with an integrated driver IC, allowing precise control of color and brightness. With support for complex effects like rainbow, meteor, fire, and music rhythm syncing, it’s compatible with a variety of Bluetooth and Wi-Fi controllers such as SP630E, SP608E, and Alexa-enabled devices. The strip includes 3-pin JST connectors and separate power lines for easy installation and voltage management. Ideal for dynamic lighting in indoor settings, from home decor to entertainment venues—note: available in IP30 (non-waterproof) and IP65 (water-resistant) variants.
