L298N Motor Driver Pack

Description

The L298N is a dual H-bridge driver capable of controlling two DC motors or a single stepper motor. It supports up to 2A per channel and can be powered from 5V–35V. Ideal for robotics and motor control projects with Arduino, ESP32, Raspberry Pi, and others.

Specs

Operating Voltage	5–35V DC
Logic Voltage	5V
Max Current	2A per channel (3A with heat-sink)
Output Voltage Drop	≈2V
Control Inputs	2× EN, IN1‑IN4
Board Features	On-board 5V regulator, terminal blocks

Compatibility

• Arduino, ESP32, ESP8266 digital I/O
• Raspberry Pi GPIO (via logic-level interface)
• Stepper and DC motors up to 2A/channel

Resources

• 📘 Arduino L298N Control Guide
  Beginner tutorial

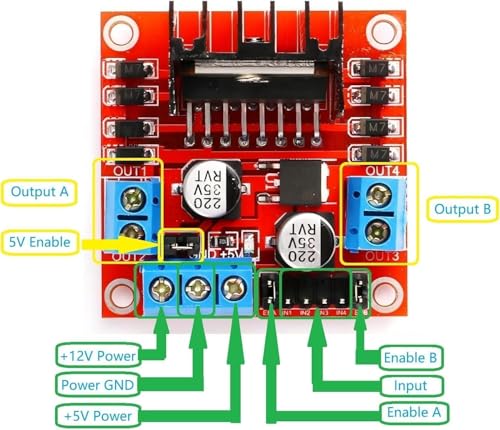

• 🔧 Pinout & Wiring Diagram
  Reference

Description
The L298N Motor Driver Module is a dual H-bridge motor driver based on the L298N chip, capable of controlling two DC motors or one stepper motor (2-phase or 4-phase). It supports drive voltages from 5V to 35V and delivers up to 2A per bridge, with a maximum power output of 25W. The module operates with a 5V logic level and is well-suited for robotics, automation, and motor control projects. Its onboard heat sink ensures stable performance under load.
