Description
The 7.4V 3000mAh LiPo battery (2S) provides increased capacity for longer runtimes in drones, RC models, and other higher-voltage projects.
Specs
| Specification |
Value |
| Nominal Voltage |
7.4 V (2 cells) |
| Capacity |
3000 mAh |
| Charging Voltage |
8.4 V ± 0.05 V |
| Discharge Cut-off Voltage |
6.0 V |
| Continuous Discharge Current |
5 C (15 A max) |
| Peak Discharge Current |
10 C (30 A max, short burst) |
| Charge Method |
CC/CV (Constant Current / Constant Voltage) |
| Dimensions |
Approx. 75 × 35 × 16 mm |
| Weight |
~95 g |
Compatibility
- LiPo chargers compatible with 2S packs
- Devices designed for 7.4V nominal voltage
- Power management for 2-cell LiPo batteries
Resources

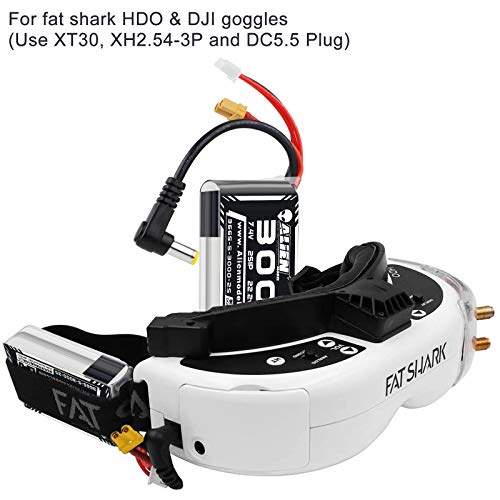

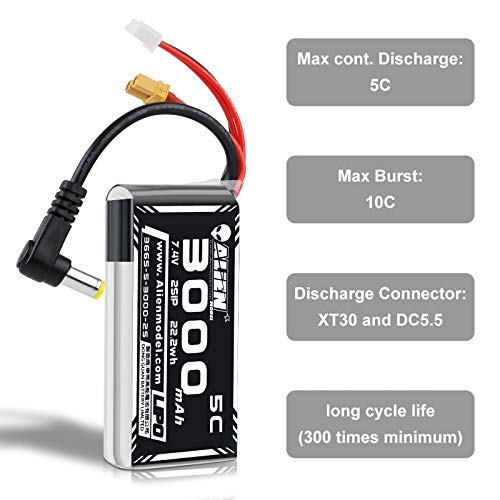

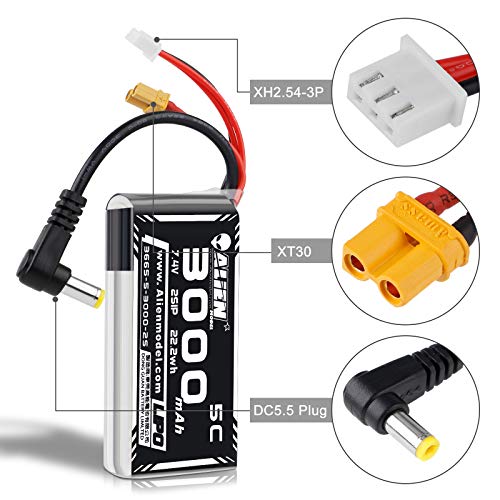

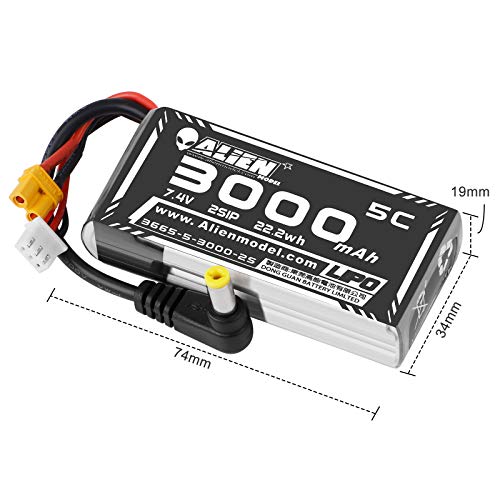

DescriptionDesigned as a superior replacement for Fat Shark goggle batteries, this ALIENMODEL 3000mAh LiPo battery offers extended usage time with minimal additional weight. Equipped with both XT30 and DC5.5 connectors, it supports 5C continuous and 10C burst discharge rates, and ensures a long cycle life of 300+ charges. Its compact size (72×34×20mm) and stable output make it ideal for FPV setups requiring reliability and endurance. Caution is advised to avoid overcharging, overheating, or short-circuiting for safe operation.
