Description

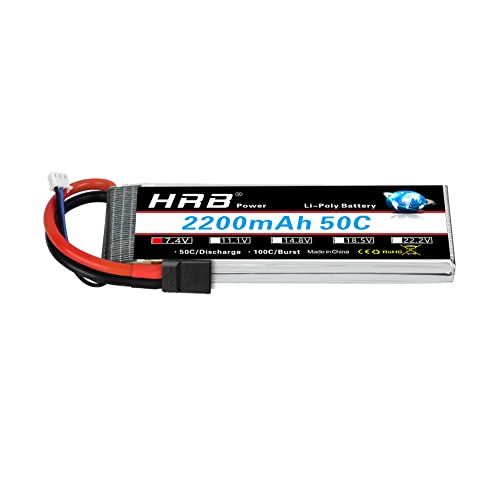

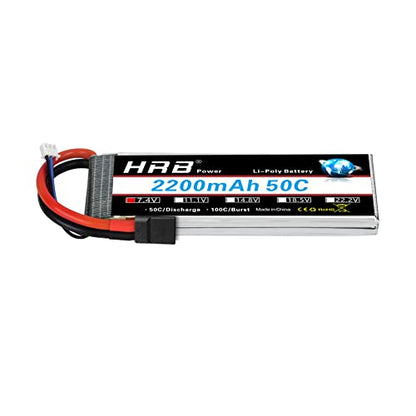

The 7.4V 2200mAh LiPo battery consists of two cells (2S) in series, providing double the nominal voltage. Suitable for drones, RC vehicles, and projects requiring higher voltage and moderate capacity.
Specs
| Specification |
Value |
| Nominal Voltage |
7.4 V (2 cells in series) |
| Capacity |
2200 mAh |
| Charging Voltage |
8.4 V ± 0.05 V |
| Discharge Cut-off Voltage |
6.0 V |
| Continuous Discharge Current |
5 C (11 A max) |
| Peak Discharge Current |
10 C (22 A max, short burst) |
| Charge Method |
CC/CV (Constant Current / Constant Voltage) |
| Dimensions |
Approx. 70 × 35 × 15 mm |
| Weight |
~85 g |
Compatibility
- LiPo chargers supporting 2S battery packs
- Devices requiring 7.4V nominal voltage input
- Power management systems designed for 2-cell LiPo batteries
Resources
DescriptionThis 7.4V, 2200mAh LiPo battery uses premium Japanese and Korean raw materials for superior performance. It supports quick recharging and offers a long cycle life of at least 150 charges, with a 50C discharge rate. Compatible with RC vehicles such as cars, boats, and helicopters, it fits when voltage, size, and plug type match exactly.
