Description

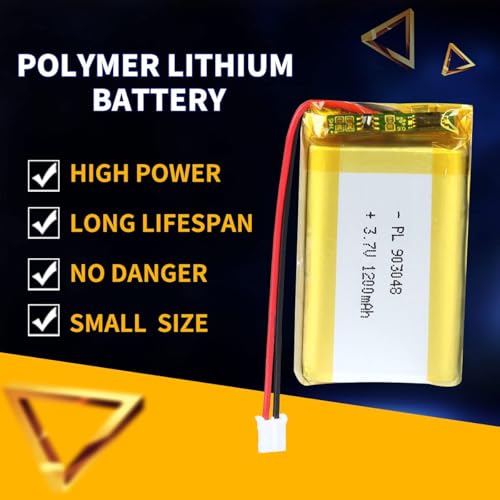

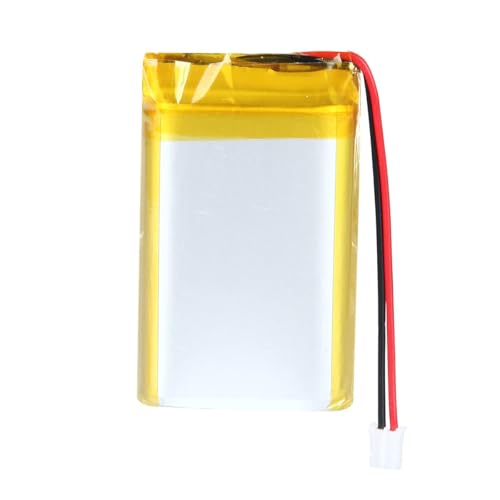

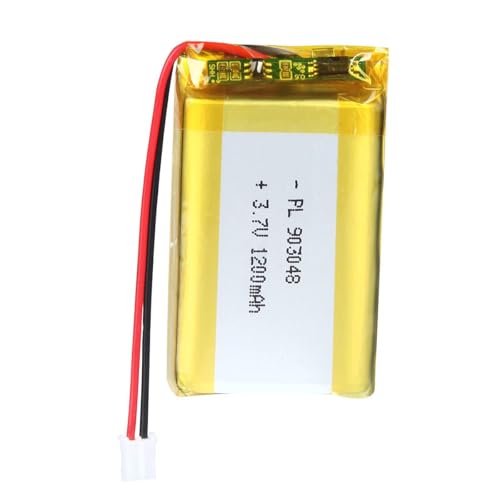

The 3.7V 1200mAh Lithium Polymer (LiPo) battery is a slightly higher capacity variant designed for longer runtime in portable devices and hobby electronics. It features the same stable voltage and charging requirements as the 1000mAh model.

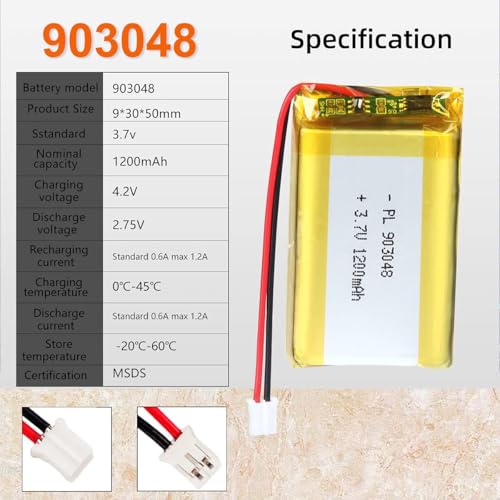

Specs
| Specification |
Value |
| Nominal Voltage |
3.7 V |
| Capacity |
1200 mAh |
| Charging Voltage |
4.2 V ± 0.05 V |
| Discharge Cut-off Voltage |
3.0 V |
| Continuous Discharge Current |
5 C (6 A max) |
| Peak Discharge Current |
10 C (12 A max, short burst) |
| Charge Method |
CC/CV (Constant Current / Constant Voltage) |
| Dimensions |
Approx. 55 × 35 × 8 mm |
| Weight |
~30 g |
Compatibility
- LiPo battery chargers with appropriate charging profile
- Devices designed for 3.7V LiPo input
- Power management circuits supporting LiPo chemistry
Resources

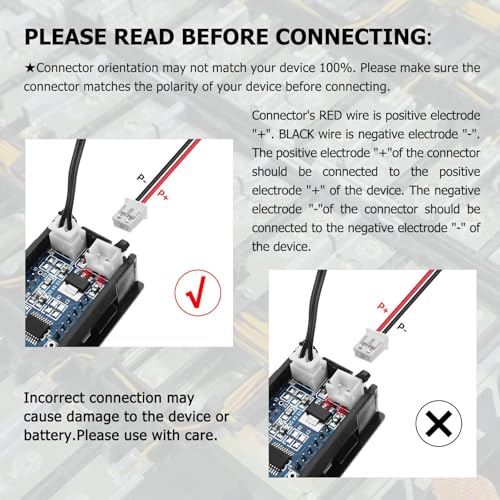

DescriptionThis 3.7V 1200mAh LiPo battery features a JST PH2.0 connector, compact dimensions, and lightweight design for use in low-power devices like MP3 players, Bluetooth headsets, GPS units, and baby monitors. Please ensure compatibility of connector type, polarity, and size before use, as it is not suited for high-current applications such as drones or RC vehicles. It offers safe, reliable power for various portable electronics.
