Description

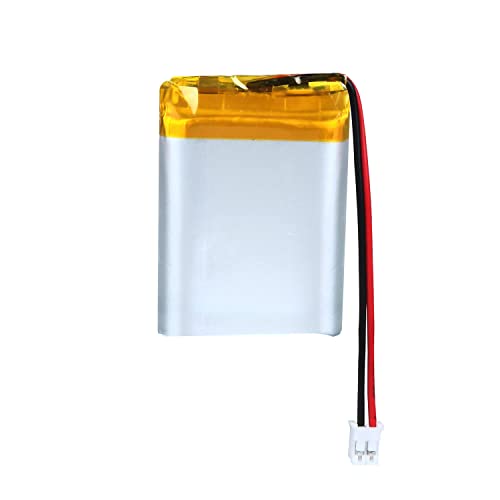

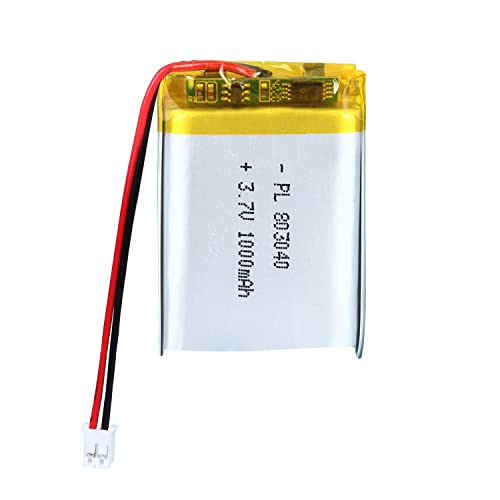

The 3.7V 1000mAh Lithium Polymer (LiPo) battery is a compact rechargeable battery commonly used for portable electronics, drones, and DIY projects requiring a lightweight power source. It offers high energy density and stable discharge performance.

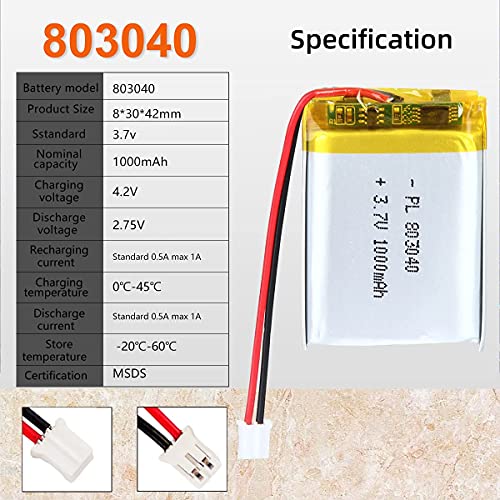

Specs
| Specification |
Value |
| Nominal Voltage |
3.7 V |
| Capacity |
1000 mAh |
| Charging Voltage |
4.2 V ± 0.05 V |
| Discharge Cut-off Voltage |
3.0 V |
| Continuous Discharge Current |
5 C (5 A max) |
| Peak Discharge Current |
10 C (10 A max, short burst) |
| Charge Method |
CC/CV (Constant Current / Constant Voltage) |
| Dimensions |
Approx. 50 × 34 × 7 mm |
| Weight |
~25 g |
Compatibility
- Rechargeable battery chargers with LiPo charging profile
- Devices requiring 3.7V nominal voltage input
- Compatible with power management circuits for LiPo
Resources

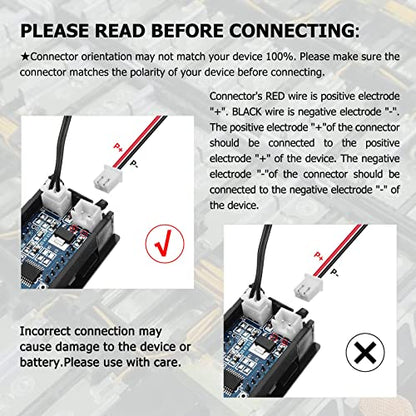

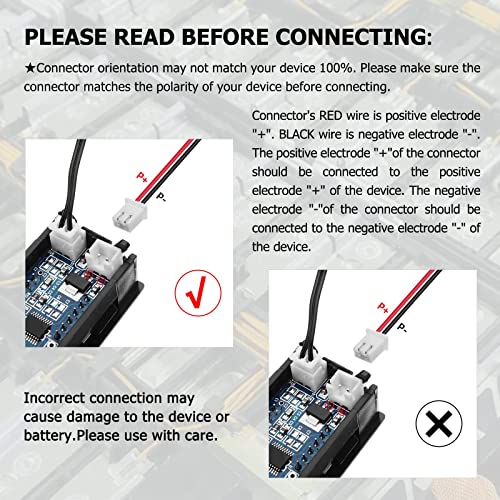

DescriptionThis 3.7V 1000mAh lithium polymer battery features JST PH2.0 connectors and must be matched carefully by polarity to avoid device damage. It’s designed for low-current devices such as smartwatches, GPS, and Bluetooth headsets—not suitable for power-hungry toys or drones. Compact and lightweight, it’s a reliable choice for small electronics.
