Arduino UNO R3 Clone

Description

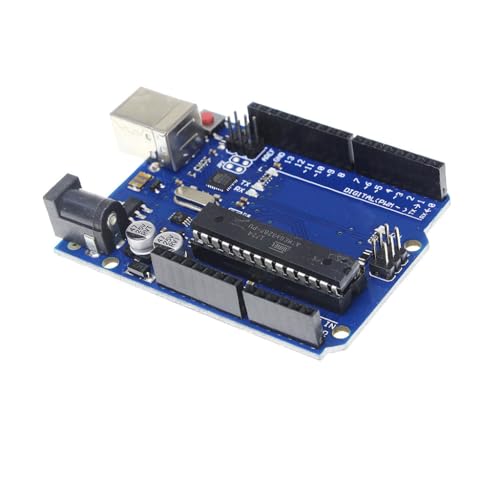

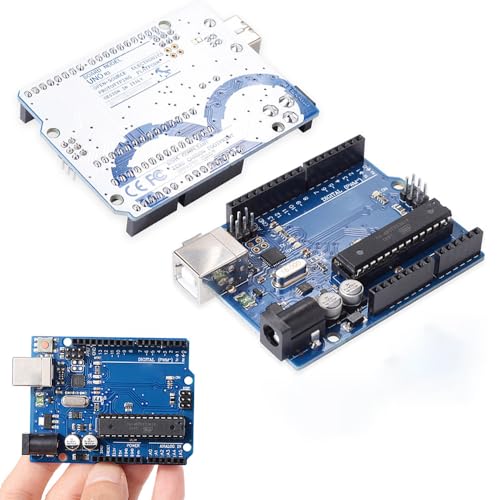

The Arduino Uno R3 Clone is a cost-effective alternative to the official Uno board. Built around the ATmega328P microcontroller, it offers the same functionality as the original, making it ideal for beginners and hobbyists. Most clones use the CH340 USB-to-serial chip instead of the ATmega16U2, requiring drivers on some systems. Fully compatible with the Arduino IDE, this board is great for education, prototyping, and DIY projects.

Specs

Specification	Value
Microcontroller	ATmega328P
Operating Voltage	5V
Input Voltage (recommended)	7–12V
Input Voltage (limits)	6–20V
Digital I/O Pins	14 (6 PWM)
Analog Input Pins	6
DC Current per I/O Pin	20 mA
Flash Memory	32 KB (0.5 KB used by bootloader)
SRAM	2 KB
EEPROM	1 KB
Clock Speed	16 MHz
USB-to-Serial Chip	CH340 or ATmega16U2 (depends on clone)
USB Connector Type	USB-B or Micro USB

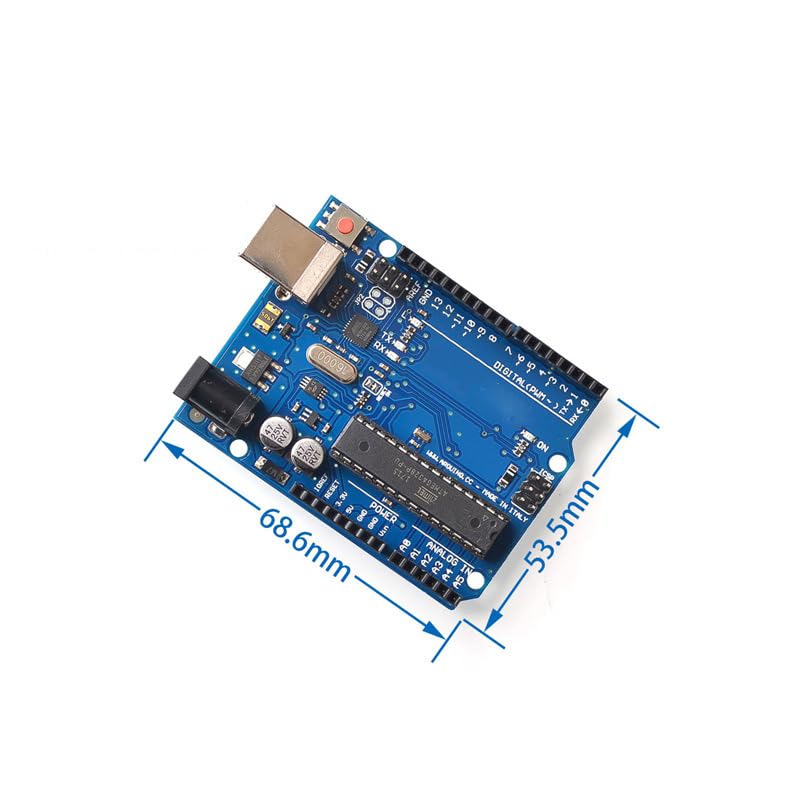

Board Dimensions	68.6 mm × 53.4 mm
Breadboard Compatible	No (use jumper wires)

Compatibility

• Compatible with all Arduino Uno libraries and shields
• Works with Arduino IDE and PlatformIO
• Ideal for robotics, automation, IoT, and education projects

Resources

• 🛠️ CH340 Driver for Windows/Mac
  Download CH340 Drivers
• 📘 Arduino UNO R3 Pinout Diagram
  View Diagram
• 💡 Getting Started with Arduino UNO
  Official Guide (still applies to clone)
• 📺 YouTube: Arduino Uno Basics Tutorial
  Watch Tutorial

Description

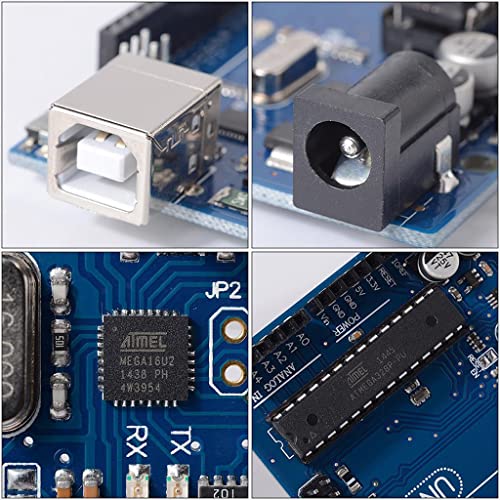

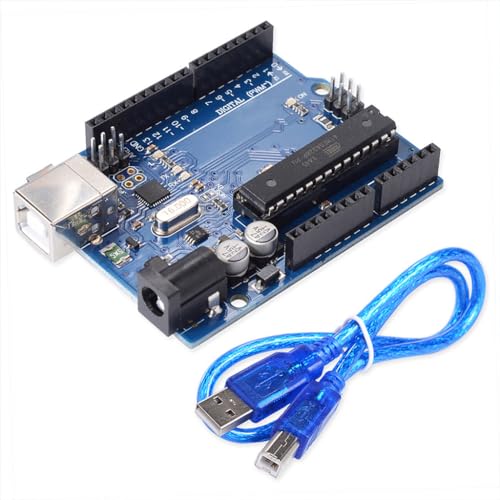

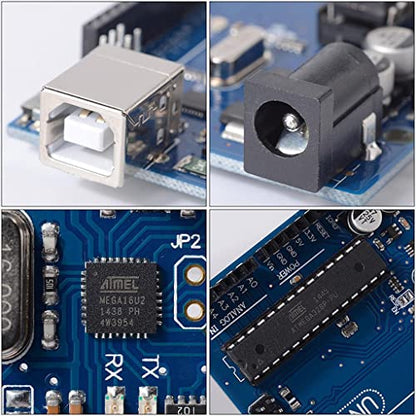

Fully compatible with Arduino Uno R3, featuring an upgraded 16U2 USB interface chip for better USB HID emulation like MIDI or joystick. The RESET button has been repositioned near the USB port for easier access, and extra pins for I2C and IOREF add expansion flexibility. Comes with an ATmega328P chip, USB cable, and a 12-month warranty for reliable use.

Specs
Specs content goes here.

Compatibility
Compatibility information goes here.

Resources
Resources and documentation go here.
