Arduino Mega 2560 REV3 Clone
Arduino Mega 2560 REV3 Clone
Regular price
$22.99 USD
Regular price
Sale price
$22.99 USD
Unit price
/
per
Couldn't load pickup availability
Share
Description

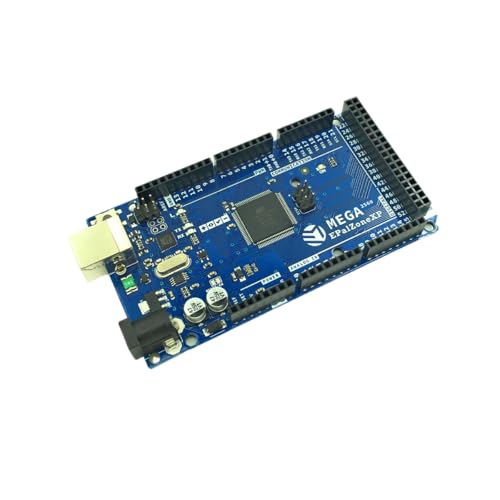

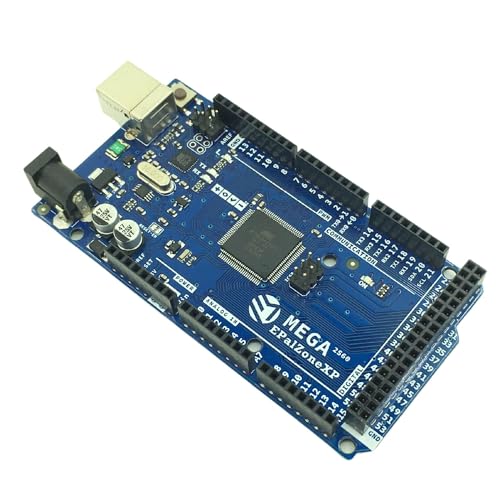

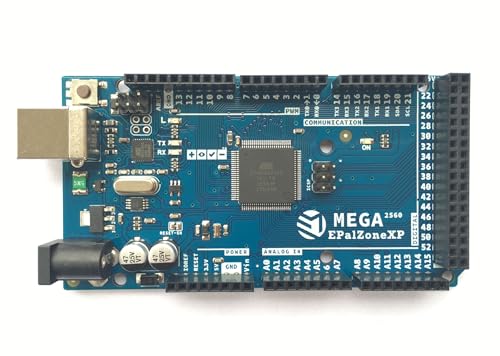

The Arduino Mega 2560 Clone is a high I/O count board based on the ATmega2560 microcontroller. It is ideal for complex projects requiring multiple sensors, displays, and communication modules. Most clones use the CH340 chip for USB connectivity. Fully compatible with official Mega 2560 libraries and the Arduino IDE.
Specs
| Specification | Value |

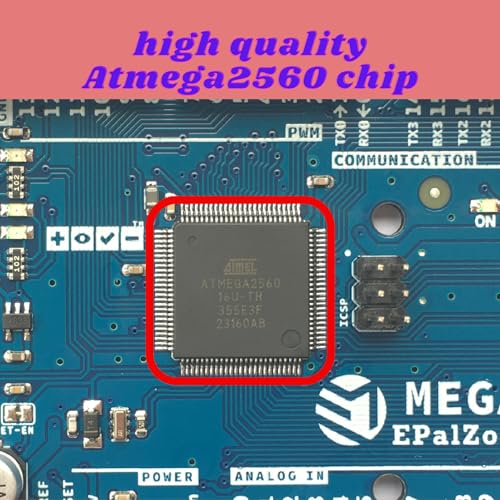

| Microcontroller | ATmega2560 |
| Operating Voltage | 5V |
| Input Voltage | 7–12V (6–20V limits) |
| Digital I/O Pins | 54 (15 PWM) |
| Analog Input Pins | 16 |
| Flash Memory | 256 KB (8 KB used by bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |

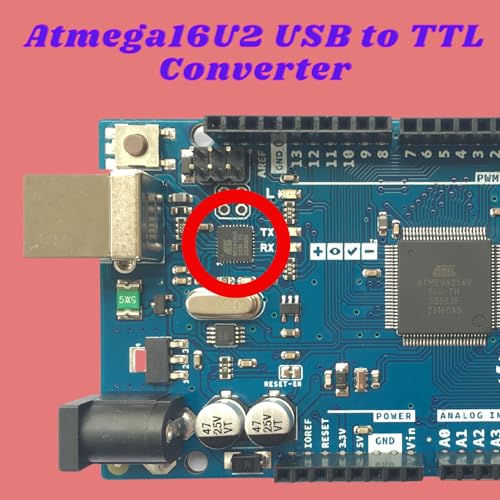

| USB-to-Serial Chip | CH340 or ATmega16U2 |
| USB Connector | USB-B |
| Board Size | 101.5 mm × 53.4 mm |
Compatibility
- Compatible with all Arduino Mega shields and libraries
- Used in 3D printers, CNC, and advanced robotics
- Works with Arduino IDE and PlatformIO
Resources
- 🛠️ CH340 Driver Download
CH340 Driver Page - 📘 Arduino Mega 2560 Pinout
Pin Diagram - 💡 Project Examples with Mega
Mega Project Hub
This Arduino Uno-compatible board is a reliable and affordable clone powered by the ATmega328P microcontroller running at 16 MHz. It offers 32KB of flash memory, 2KB of SRAM, and 1KB of EEPROM for a wide range of project development. With 14 digital I/O pins (including 6 PWM outputs) and 6 analog inputs at 10-bit resolution, it’s perfect for controlling sensors, motors, and other components. The built-in USB port (typically using a CH340 or similar USB-to-serial chip) allows for easy programming and communication via the Arduino IDE. Ideal for robotics, IoT, and educational prototyping, this Uno clone delivers full compatibility at a great value.
