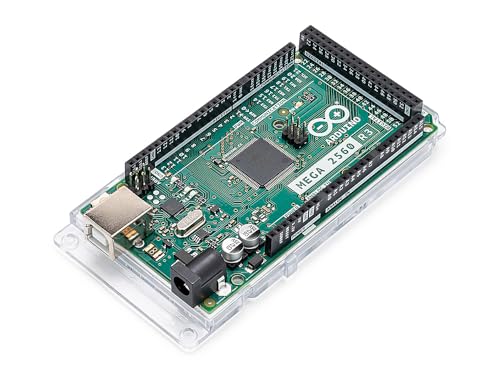

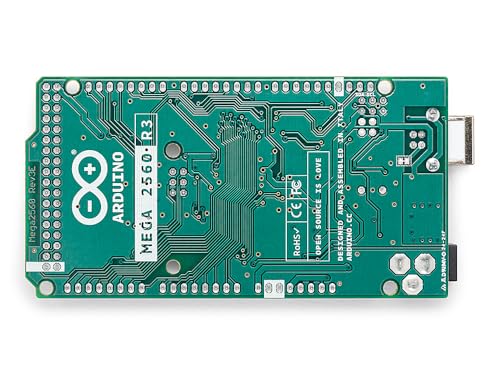

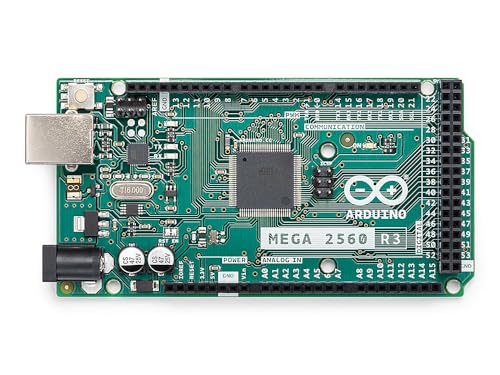

Arduino Mega 2560 REV3

Description

The Arduino Mega 2560 is a powerful microcontroller board designed for large, complex projects. Based on the ATmega2560, it offers more I/O pins, memory, and serial ports than the Uno, making it ideal for automation, robotics, and 3D printing applications.

Specs

Specification	Value
Microcontroller	ATmega2560
Operating Voltage	5V
Input Voltage (recommended)	7–12V
Input Voltage (limits)	6–20V
Digital I/O Pins	54
PWM Channels	15
Analog Input Pins	16
DC Current per I/O Pin	40 mA
Flash Memory	256 KB (8 KB used by bootloader)
SRAM	8 KB
EEPROM	4 KB
Clock Speed	16 MHz
USB Connector	USB Type-B
Board Dimensions	101.5 mm x 53.4 mm

Compatibility

• Arduino IDE
• RepRap and Marlin-based 3D printer firmware
• Multiple serial devices (4 UARTs)
• Windows, macOS, Linux systems

Resources

• 📘 Official Mega 2560 Guide
  Arduino Docs
• 🔧 Pinout Diagram
  Pighixxx Mega Pinout
• 💡 Marlin 3D Printer Firmware
  Marlin Firmware Home
